Vehiculo eléctrico para aeropuerto

CARTTEC  LQ-F090

(Inglés)

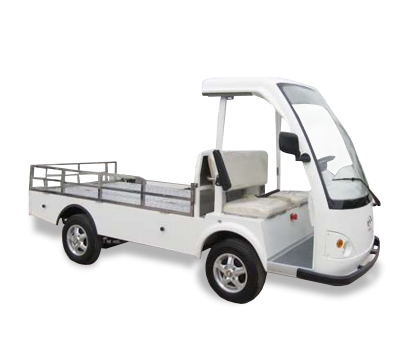

Customizable electric freight car with welded tubular steel chassis.

TECHNICAL SPECIFICATIONS:
· Material: high impact fiber glass.
· Dimensions: 3820 x 1430 × 1940mm.
· Weight platform: 2400 × 1360 x 300mm.
· F/R Tread: 1210/1200mm.
· Curb weight: 850kg.
· Nominal load capacity: 900kg.
· Passenger capacity: : 2 seats (sponge + artificial leather).
· Max. speed: 28km/h.
· Range (loaded): 70km.
· Climbing Ability(loaded): 12%.
· Braking Distance: 4.3m.
· Min.Turning Radius: 4.3m.
· Min.Clearance: 150mm.
· Recharge time: 8~10h.
